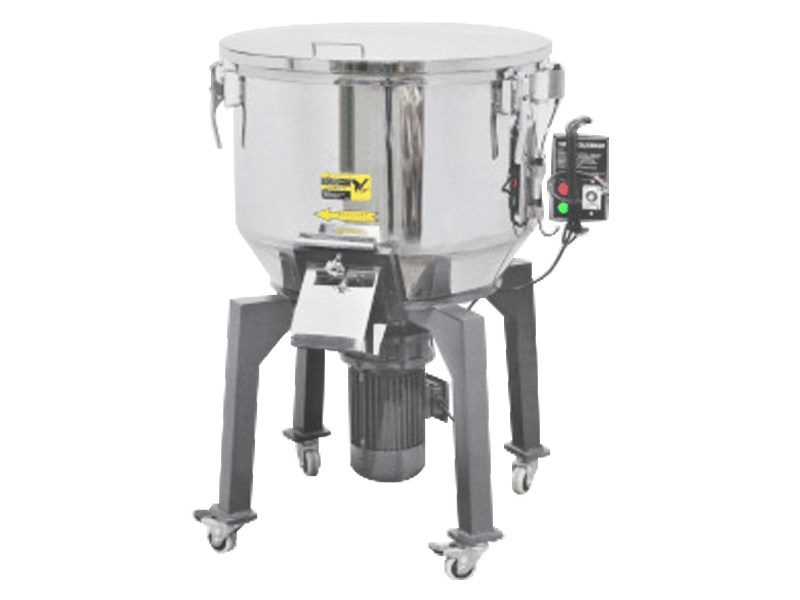

Mezclador – Tipo Vertical Normal
- Vertical structure with castor for easy moving, small footpint.
- Cycloid reducer features low noise and long service life.
- Mix regrind and new materials in a proper proportion within short time with high efficiency and low consumption.
- Pail Lid and bottom are stamped with precise matching ensures durability.
- Mixing time can be set from 0-30 minutes.
Especificaciones
| Modelo | Poder | Capacidad | Velocidad de rotación | Voltaje | Tamaño (CM) | Peso (KG) |
|---|---|---|---|---|---|---|
| NBV – 25 | 0.75 KW / 1 HP | 25 | 85 r / min | 380V, 3Φ | 73 x 70 x 95 cm | 85 kgs |
| NBV – 50 | 1.5 KW / 2 HP | 50 | 85 r / min | 380V, 3Φ | 85 x 83 x 112 cm | 125 kgs |
| NBV – 100 | 3 KW / 4 HP | 100 | 85 r / min | 380V, 3Φ | 100 x 100 x 129 cm | 180 kgs |
| NBV – 150 | 4 KW / 5.5 HP | 150 | 85 r / min | 380V, 3Φ | 113 x 113 x 131 cm | 270 kgs |
| NBV – 200 | 5.5 KW / 7.5 HP | 200 | 85 r / min | 380V, 3Φ | 125 x 125 x 139 cm | 313 kgs |
| NBV – 300 | 7.5 KW / 10 HP | 300 | 85 r / min | 380V, 3Φ | 135 x 135 x 160 cm | 400 kgs |
